Spring Data JPA Method Naming Conventions for Query

Spring data JPA has its own naming conventions for methods. Following these conventions we can build sophisticated queries. These conventions are called also called as method name strategies. These strategies have defined set of keyword to use in method names. Based on the formed method name, method performs predefined operations.  As a simple example:

public interface  StudentRepository extends CrudRepository<Student, Long>{

        List<Student> findByStudentId(Long studentId);

        List<Student> findByStudentIdLessThanAndMarksGreaterThan(Long studentId, Long marks);

}

@Service("studentService")

public class StudentService {

        @Autowired

        private StudentRepository repository;



        public void test() {

                List<Student> students1 = repository.findByStudentId(1L);

                students1.forEach(student1 -> System.out.println(student1));



                List<Student> students2 = repository.findByStudentIdLessThanAndMarksGreaterThan(3L, 99L);

                students2.forEach(student2 -> System.out.println(student2));

        }

}



This is an equivalent of below plain JPA

public class StudentService {



         EntityManagerFactory emf = Persistence.createEntityManagerFactory("StudentPU");

     EntityManager em = emf.createEntityManager();



        public void test(Long studentId) {



                // Find students by studentId

                List<Student> students1 = findByStudentId(1L);

                students1.forEach(student1 -> System.out.println(student1));



                // List all students whose studentId is less than and marks greater than

                List<Student> students2 = findByStudentIdLessThanAndMarksGreaterThan(3L, 99L);

                students2.forEach(student2 -> System.out.println(student2));

        }



        public List<Student> findByStudentId(Long studentId) {



        em.getTransaction().begin();

        Query q = em.createQuery("SELECT S FROM STUDENT S WHERE S.studentID = :studentID");

        q.setParameter("studentID", studentId);



        return (List<Student>) q.getResultList();

        }



        public List<Student> findByStudentIdLessThanAndMarksGreaterThan(Long studentId, Long marks) {



        em.getTransaction().begin();



        Query q = em.createQuery("SELECT S FROM STUDENT S WHERE S.studentID < :studentID AND S.marks > :marks");

        q.setParameter("studentID", studentId);

        q.setParameter("studentID", marks);

        return (List<Student>) q.getResultList();

        }

}



The following table shows Supported keywords inside method names

Keyword

Sample

JPQL snippet

And

findByLastnameAndFirstname

… where x.lastname = ?1 and x.firstname = ?2

Or

findByLastnameOrFirstname

… where x.lastname = ?1 or x.firstname = ?2

Is

Equals

findByFirstname

findByFirstnameIs

findByFirstnameEquals

… where x.firstname = ?1

Between

findByStartDateBetween

… where x.startDate between ?1 and ?2

LessThan

findByAgeLessThan

… where x.age < ?1

LessThanEqual

findByAgeLessThanEqual

… where x.age <= ?1

GreaterThan

findByAgeGreaterThan

… where x.age > ?1

GreaterThanEqual

findByAgeGreaterThanEqual

… where x.age >= ?1

After

findByStartDateAfter

… where x.startDate > ?1

Before

findByStartDateBefore

… where x.startDate < ?1

IsNull

findByAgeIsNull

… where x.age is null

IsNotNull,NotNull

findByAge(Is)NotNull

… where x.age not null

Like

findByFirstnameLike

… where x.firstname like ?1

NotLike

findByFirstnameNotLike

… where x.firstname not like ?1

StartingWith

findByFirstnameStartingWith

… where x.firstname like ?1(parameter bound with appended %)

EndingWith

findByFirstnameEndingWith

… where x.firstname like ?1(parameter bound with prepended %)

Containing

findByFirstnameContaining

… where x.firstname like ?1(parameter bound wrapped in %)

OrderBy

findByAgeOrderByLastnameDesc

… where x.age = ?1 order by x.lastname desc

Not

findByLastnameNot

… where x.lastname <> ?1

In

findByAgeIn(Collection<Age> ages)

… where x.age in ?1

NotIn

findByAgeNotIn(Collection<Age> ages)

… where x.age not in ?1

True

findByActiveTrue()

… where x.active = true

False

findByActiveFalse()

… where x.active = false

IgnoreCase

findByFirstnameIgnoreCase

… where UPPER(x.firstame) = UPPER(?1)

Spring Data JPA Method Naming Conventions for Query Example

Now let us see one example how method naming conventions and strategies play a role in spring data JPA.

Database script (MySQL)

CREATE TABLE STUDENT (

       STUDENTID INT NOT NULL AUTO_INCREMENT,

       FIRSTNAME VARCHAR(20) DEFAULT NULL,

       LASTNAME VARCHAR(20) DEFAULT NULL,

       MARKS INT(20) DEFAULT NULL,

       PRIMARY KEY (STUDENTID)

);



INSERT INTO STUDENT (FIRSTNAME,LASTNAME,MARKS) VALUES ('Manu','Manjunatha', 100);

INSERT INTO STUDENT (FIRSTNAME,LASTNAME,MARKS) VALUES('Advith','Tyagraj', 100);

INSERT INTO STUDENT (FIRSTNAME,LASTNAME,MARKS) VALUES('Likitha','Tyagraj', 98);



COMMIT;

pom.xml

<project xmlns="https://maven.apache.org/POM/4.0.0"

        xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance"

        xsi:schemaLocation="https://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">

        <modelVersion>4.0.0</modelVersion>

        <groupId>com.java4coding</groupId>

        <artifactId>QueryCreationFromMethodNames</artifactId>

        <version>0.0.1-SNAPSHOT</version>



        <dependencies>

                <dependency>

                        <groupId>org.springframework</groupId>

                        <artifactId>spring-context</artifactId>

                        <version>5.1.4.RELEASE</version>

                </dependency>

                <dependency>

                        <groupId>org.springframework</groupId>

                        <artifactId>spring-orm</artifactId>

                        <version>5.1.4.RELEASE</version>

                </dependency>

                <dependency>

                        <groupId>org.hibernate</groupId>

                        <artifactId>hibernate-core</artifactId>

                        <version>5.4.1.Final</version>

                </dependency>

                <dependency>

                        <groupId>org.springframework.data</groupId>

                        <artifactId>spring-data-jpa</artifactId>

                        <version>2.1.4.RELEASE</version>

                </dependency>

                <dependency>

                        <groupId>mysql</groupId>

                        <artifactId>mysql-connector-java</artifactId>

                        <version>8.0.14</version>

                </dependency>

        </dependencies>



        <build>

                <plugins>

                        <plugin>

                                <groupId>org.apache.maven.plugins</groupId>

                                <artifactId>maven-compiler-plugin</artifactId>

                                <version>3.8.1</version>

                                <configuration>

                                        <source>1.8</source>

                                        <target>1.8</target>

                                </configuration>

                        </plugin>

                </plugins>

        </build>

</project>

persistence.xml

<?xml version="1.0" encoding="UTF-8"?>

<persistence xmlns="https://java.sun.com/xml/ns/persistence"

        xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance"

        xsi:schemaLocation="https://java.sun.com/xml/ns/persistence

             https://java.sun.com/xml/ns/persistence/persistence_2_0.xsd"

        version="2.0">



        <persistence-unit name="StudentPU">

                <provider>org.hibernate.ejb.HibernatePersistence</provider>

                <properties>

                        <property name="hibernate.connection.url" value="jdbc:mysql://localhost:3306/study" />

                        <property name="hibernate.connection.driver_class" value="com.mysql.cj.jdbc.Driver" />

                        <property name="hibernate.connection.username" value="root" />

                        <property name="hibernate.connection.password" value="root" />

                        <property name="hibernate.archive.autodetection" value="class" />

                        <property name="hibernate.show_sql" value="true" />

                        <property name="hibernate.format_sql" value="true" />

                        <property name="hbm2ddl.auto" value="update" />

                </properties>

        </persistence-unit>

</persistence>

Student.java

package com.java4coding;



import javax.persistence.Entity;

import javax.persistence.GeneratedValue;

import javax.persistence.GenerationType;

import javax.persistence.Id;



@Entity

public class Student {



        @Id

        @GeneratedValue(strategy = GenerationType.IDENTITY)

        private Long studentId;

        private String firstName;

        private String lastName;

        private Long marks;



        public Student() {

                super();

        }



        public Student(String firstName, String lastName, Long marks) {

                super();

                this.firstName = firstName;

                this.lastName = lastName;

                this.marks = marks;

        }



        //Setters and getters

        public Long getId() {

                return studentId;

        }



        public void setId(Long id) {

                this.studentId = id;

        }



        public String getFirstName() {

                return firstName;

        }



        public void setFirstName(String firstName) {

                this.firstName = firstName;

        }



        public String getLastName() {

                return lastName;

        }



        public void setLastName(String lastName) {

                this.lastName = lastName;

        }



        public Long getMarks() {

                return marks;

        }



        public void setMarks(Long marks) {

                this.marks = marks;

        }



        @Override

        public String toString() {

                return "Student [firstName=" + firstName + ", lastName=" + lastName + ", Marks= " + marks + "]";

        }

}

AppConfig.java

package com.java4coding;



import javax.persistence.EntityManagerFactory;



import org.springframework.context.annotation.Bean;

import org.springframework.context.annotation.Configuration;

import org.springframework.data.jpa.repository.config.EnableJpaRepositories;

import org.springframework.orm.jpa.JpaTransactionManager;

import org.springframework.orm.jpa.LocalEntityManagerFactoryBean;



@Configuration

@EnableJpaRepositories(basePackages = {"com.java4coding"})

public class AppConfig {

        @Bean

        public LocalEntityManagerFactoryBean entityManagerFactory() {

                LocalEntityManagerFactoryBean factoryBean = new LocalEntityManagerFactoryBean();

                factoryBean.setPersistenceUnitName("StudentPU");



                return factoryBean;

        }



        @Bean

        public JpaTransactionManager transactionManager(EntityManagerFactory entityManagerFactory) {

                JpaTransactionManager transactionManager = new JpaTransactionManager();

                transactionManager.setEntityManagerFactory(entityManagerFactory);



                return transactionManager;

        }

}

StudentRepository.java

package com.java4coding;



import java.util.List;

import org.springframework.data.repository.CrudRepository;



public interface  StudentRepository extends CrudRepository<Student, Long>{

        List<Student> findByStudentId(Long studentId);



        List<Student> findByStudentIdLessThanAndMarksGreaterThan(Long studentId, Long marks);

}

StudentService.java

package com.java4coding;



import java.util.List;



import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.stereotype.Service;



@Service("studentService")

public class StudentService {

        @Autowired

        private StudentRepository repository;



        public void test() {

                // Find students by studentId

                List<Student> students1 = repository.findByStudentId(1L);

                students1.forEach(student1 -> System.out.println(student1));



                // List all students whose studentId is less than and marks greater than

                List<Student> students2 = repository.findByStudentIdLessThanAndMarksGreaterThan(3L, 99L);

                students2.forEach(student2 -> System.out.println(student2));



                // Count number of customer

                long count = repository.count();

                System.out.println("Number of students: " + count);

        }

}

Test.java

package com.java4coding;



import org.springframework.context.annotation.AnnotationConfigApplicationContext;



public class Test {

        public static void main(String[] args) {

                AnnotationConfigApplicationContext appContext = new AnnotationConfigApplicationContext();

                appContext.scan("com.java4coding");

                appContext.refresh();



                StudentService studentService = (StudentService) appContext.getBean("studentService");

                studentService.test();



                appContext.close();

        }

}

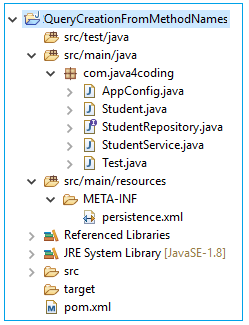

Project directory structure

spring-data-jpa-method-naming-conventions-0


Output

Hibernate:

    select

        student0_.studentId as studentI1_0_,

        student0_.firstName as firstNam2_0_,

        student0_.lastName as lastName3_0_,

        student0_.marks as marks4_0_

    from

        Student student0_

    where

        student0_.studentId=?

Student [firstName=Manu, lastName=Manjunatha, Marks= 100]

Hibernate:

    select

        student0_.studentId as studentI1_0_,

        student0_.firstName as firstNam2_0_,

        student0_.lastName as lastName3_0_,

        student0_.marks as marks4_0_

    from

        Student student0_

    where

        student0_.studentId<?

        and student0_.marks>?

Student [firstName=Manu, lastName=Manjunatha, Marks= 100]

Student [firstName=Advith, lastName=Tyagraj, Marks= 100]

Hibernate:

    select

        count(*) as col_0_0_

    from

        Student student0_

Number of students: 3
