Spring Data JPA Named Query

The declaration of named query over entity classes is same in spring data JPA as in plain JPA. Only the difference is how these named quires are called to execute the data base query.

If the JPQL query strings are used many number of times then that query can be declared as a template. To declare query templates statically use the NamedQuery and NamedQueries annotations. NamedQuery and NamedQueries annotations can be declared over entity class.  NamedQuery annotation declares a single named query. This takes two arguments one is the name for the query and second is the JPQL query string.

@Entity

@NamedQuery(name = "Student.query1", query = "SELECT x FROM Student x ")



@NamedQueries({

                @NamedQuery(name = "Student.query2", query = "SELECT S FROM Student S WHERE S.studentId = :studentId"),

                @NamedQuery(name = "Student.query3", query = "SELECT S FROM Student S WHERE S.studentId < :studentId AND S.marks > :marks") })

public class Student {

… …

… …

}

If there are many named queries over the entity then they can be grouped together using NamedQueries annotations.  To retrieve named queries, create a method with name same as query name.

public interface  StudentRepository extends CrudRepository<Student, Long>{

        List<Student> query1();

        List<Student> query2(@Param("studentId")Long studentId);

        List<Student> query3(@Param("studentId")Long studentId, @Param("marks")Long marks);

}

Spring Data JPA Named Query Example

Now let us see one example on how NamedQuery and NamedQueries can be used with spring data JPA.

Database script (MySQL)

CREATE TABLE STUDENT (

       STUDENTID INT NOT NULL AUTO_INCREMENT,

       FIRSTNAME VARCHAR(20) DEFAULT NULL,

       LASTNAME VARCHAR(20) DEFAULT NULL,

       MARKS INT(20) DEFAULT NULL,

       PRIMARY KEY (STUDENTID)

);



INSERT INTO STUDENT (FIRSTNAME,LASTNAME,MARKS) VALUES ('Manu','Manjunatha', 100);

INSERT INTO STUDENT (FIRSTNAME,LASTNAME,MARKS) VALUES('Advith','Tyagraj', 100);

INSERT INTO STUDENT (FIRSTNAME,LASTNAME,MARKS) VALUES('Likitha','Tyagraj', 98);



COMMIT;

pom.xml

<project xmlns="https://maven.apache.org/POM/4.0.0"

        xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance"

        xsi:schemaLocation="https://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">

        <modelVersion>4.0.0</modelVersion>

        <groupId>com.java4coding</groupId>

        <artifactId>SpringDataJPA_NamedQueries</artifactId>

        <version>0.0.1-SNAPSHOT</version>



        <dependencies>

                <dependency>

                        <groupId>org.springframework</groupId>

                        <artifactId>spring-context</artifactId>

                        <version>5.1.4.RELEASE</version>

                </dependency>

                <dependency>

                        <groupId>org.springframework</groupId>

                        <artifactId>spring-orm</artifactId>

                        <version>5.1.4.RELEASE</version>

                </dependency>

                <dependency>

                        <groupId>org.hibernate</groupId>

                        <artifactId>hibernate-core</artifactId>

                        <version>5.4.1.Final</version>

                </dependency>

                <dependency>

                        <groupId>org.springframework.data</groupId>

                        <artifactId>spring-data-jpa</artifactId>

                        <version>2.1.4.RELEASE</version>

                </dependency>

                <dependency>

                        <groupId>mysql</groupId>

                        <artifactId>mysql-connector-java</artifactId>

                        <version>8.0.14</version>

                </dependency>

        </dependencies>



        <build>

                <plugins>

                        <plugin>

                                <groupId>org.apache.maven.plugins</groupId>

                                <artifactId>maven-compiler-plugin</artifactId>

                                <version>3.8.1</version>

                                <configuration>

                                        <source>1.8</source>

                                        <target>1.8</target>

                                </configuration>

                        </plugin>

                </plugins>

        </build>

</project>

persistence.xml

<?xml version="1.0" encoding="UTF-8"?>

<persistence xmlns="https://java.sun.com/xml/ns/persistence"

        xmlns:xsi="https://www.w3.org/2001/XMLSchema-instance"

        xsi:schemaLocation="https://java.sun.com/xml/ns/persistence

             https://java.sun.com/xml/ns/persistence/persistence_2_0.xsd"

        version="2.0">



        <persistence-unit name="StudentPU">

                <provider>org.hibernate.ejb.HibernatePersistence</provider>

                <properties>

                        <property name="hibernate.connection.url" value="jdbc:mysql://localhost:3306/study" />

                        <property name="hibernate.connection.driver_class" value="com.mysql.cj.jdbc.Driver" />

                        <property name="hibernate.connection.username" value="root" />

                        <property name="hibernate.connection.password" value="root" />

                        <property name="hibernate.archive.autodetection" value="class" />

                        <property name="hibernate.show_sql" value="true" />

                        <property name="hibernate.format_sql" value="true" />

                        <property name="hbm2ddl.auto" value="update" />

                </properties>

        </persistence-unit>

</persistence>

Student.java

package com.java4coding;



import javax.persistence.Entity;

import javax.persistence.GeneratedValue;

import javax.persistence.GenerationType;

import javax.persistence.Id;

import javax.persistence.NamedQueries;

import javax.persistence.NamedQuery;



@Entity

@NamedQuery(name = "Student.query1", query = "SELECT x FROM Student x ")



@NamedQueries({

                @NamedQuery(name = "Student.query2", query = "SELECT S FROM Student S WHERE S.studentId = :studentId"),

                @NamedQuery(name = "Student.query3", query = "SELECT S FROM Student S WHERE S.studentId < :studentId AND S.marks > :marks") })



public class Student {



        @Id

        @GeneratedValue(strategy = GenerationType.IDENTITY)

        private Long studentId;

        private String firstName;

        private String lastName;

        private Long marks;



        public Student() {

                super();

        }



        public Student(String firstName, String lastName, Long marks) {

                super();

                this.firstName = firstName;

                this.lastName = lastName;

                this.marks = marks;

        }



        //Setters and getters

        public Long getId() {

                return studentId;

        }



        public void setId(Long id) {

                this.studentId = id;

        }



        public String getFirstName() {

                return firstName;

        }



        public void setFirstName(String firstName) {

                this.firstName = firstName;

        }



        public String getLastName() {

                return lastName;

        }



        public void setLastName(String lastName) {

                this.lastName = lastName;

        }



        public Long getMarks() {

                return marks;

        }



        public void setMarks(Long marks) {

                this.marks = marks;

        }



        @Override

        public String toString() {

                return "Student [firstName=" + firstName + ", lastName=" + lastName + ", Marks= " + marks + "]";

        }

}

AppConfig.java

package com.java4coding;



import javax.persistence.EntityManagerFactory;



import org.springframework.context.annotation.Bean;

import org.springframework.context.annotation.Configuration;

import org.springframework.data.jpa.repository.config.EnableJpaRepositories;

import org.springframework.orm.jpa.JpaTransactionManager;

import org.springframework.orm.jpa.LocalEntityManagerFactoryBean;



@Configuration

@EnableJpaRepositories(basePackages = {"com.java4coding"})

public class AppConfig {

        @Bean

        public LocalEntityManagerFactoryBean entityManagerFactory() {

                LocalEntityManagerFactoryBean factoryBean = new LocalEntityManagerFactoryBean();

                factoryBean.setPersistenceUnitName("StudentPU");



                return factoryBean;

        }



        @Bean

        public JpaTransactionManager transactionManager(EntityManagerFactory entityManagerFactory) {

                JpaTransactionManager transactionManager = new JpaTransactionManager();

                transactionManager.setEntityManagerFactory(entityManagerFactory);



                return transactionManager;

        }

}

StudentRepository.java

package com.java4coding;



import java.util.List;

import org.springframework.data.repository.CrudRepository;

import org.springframework.data.repository.query.Param;



public interface  StudentRepository extends CrudRepository<Student, Long>{

        List<Student> query1();

        List<Student> query2(@Param("studentId")Long studentId);

        List<Student> query3(@Param("studentId")Long studentId, @Param("marks")Long marks);

}

StudentService.java

package com.java4coding;



import java.util.List;



import org.springframework.beans.factory.annotation.Autowired;

import org.springframework.stereotype.Service;



@Service("studentService")

public class StudentService {

        @Autowired

        private StudentRepository repository;



        public void test() {

                List<Student> students1 = repository.query1();

                students1.forEach(student1 -> System.out.println(student1));



                List<Student> students2 = repository.query2(1L);

                students2.forEach(student2 -> System.out.println(student2));



                List<Student> students3 = repository.query3(3L, 99L);

                students3.forEach(student3 -> System.out.println(student3));

        }

}

Test.java

package com.java4coding;



import org.springframework.context.annotation.AnnotationConfigApplicationContext;



public class Test {

        public static void main(String[] args) {

                AnnotationConfigApplicationContext appContext = new AnnotationConfigApplicationContext();

                appContext.scan("com.java4coding");

                appContext.refresh();



                StudentService studentService = (StudentService) appContext.getBean("studentService");

                studentService.test();



                appContext.close();

        }

}

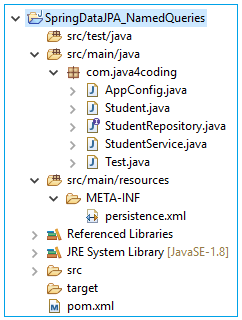

Project directory structure

spring-data-jpa-named-query-0


Output

Hibernate:

    select

        student0_.studentId as studentI1_0_,

        student0_.firstName as firstNam2_0_,

        student0_.lastName as lastName3_0_,

        student0_.marks as marks4_0_

    from

        Student student0_

Student [firstName=Manu, lastName=Manjunatha, Marks= 100]

Student [firstName=Advith, lastName=Tyagraj, Marks= 100]

Student [firstName=Likitha, lastName=Tyagraj, Marks= 98]

Hibernate:

    select

        student0_.studentId as studentI1_0_,

        student0_.firstName as firstNam2_0_,

        student0_.lastName as lastName3_0_,

        student0_.marks as marks4_0_

    from

        Student student0_

    where

        student0_.studentId=?

Student [firstName=Manu, lastName=Manjunatha, Marks= 100]

Hibernate:

    select

        student0_.studentId as studentI1_0_,

        student0_.firstName as firstNam2_0_,

        student0_.lastName as lastName3_0_,

        student0_.marks as marks4_0_

    from

        Student student0_

    where

        student0_.studentId<?

        and student0_.marks>?

Student [firstName=Manu, lastName=Manjunatha, Marks= 100]

Student [firstName=Advith, lastName=Tyagraj, Marks= 100]
